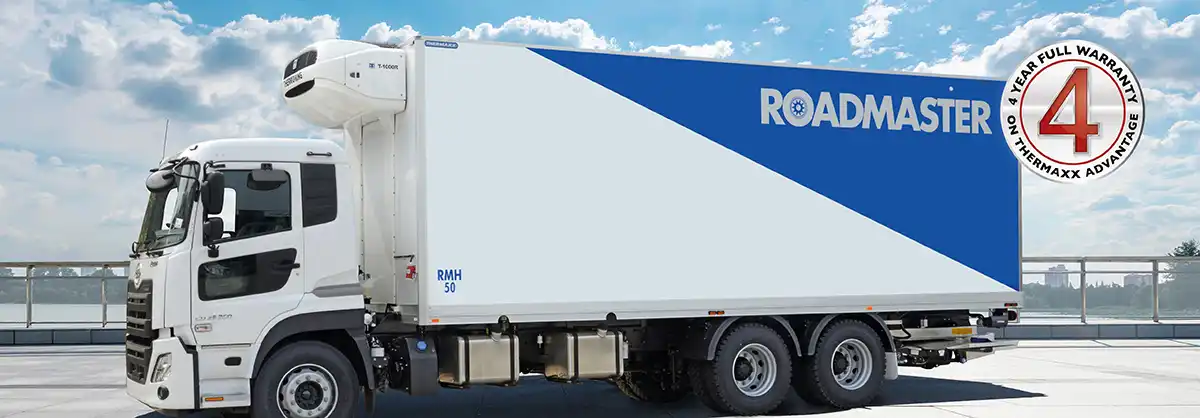

Model: A7850P – EHO
Temperature Capacity: -20C*
Cubic Capacity: 44.99 m/3
BODY DIMENSION
- External length – 7850mm
- External width – 2490mm
- External height – 2650mm
- Internal length – 7620mm
- Internal width – 2410mm
- Internal height – 2450mm
- Pallet loading – 12 Pallet capacity
Fitted body weight *3218kg
PANELS THICKNESS
- Roof/floor – 100mm
- Front wall – 100mm
- Side walls/side doors – 40mm
- Side door – N/A
- Rear door – 65mm freezer rated roller shutter door with galvanised frame
- Front wall frame – Universal to suit diesel drive units
- Side step – N/A
- Rear step – Heavy duty crash bar
- Cargo track – 2 recessed row @ 800-1400mm 2 shoring bars
- Floor – One piece aluminium ricegrain
- Internal light – 3 LED sensor lights
- Refrigeration – Thermo King T-1000R
Standard Inclusions
- High density polyurethane insulation
- European design
- European construction
- Low tare weight
- Higher legal payload
- Galvanised sub frame
- Stainless door frames
- Anodised corner mouldings
- Long life EPDM rubber seals on roller door
- Internal LED sensor lights
- Rubber bump stops
- Rear/side grab handles
- Recessed load restraint track
- Moulded plastic mud guards
- Alloy kick panel
- Options available to suit customer requirements
- Heavy duty galvanised rear door frame
Thermal efficiency ‘K’ VALUE .64 W/m2K tested to Australian Standard AS4982
TRS/Thermaxx mission is one of continuous improvement; we reserve the right to change without notice or obligation to modify the technical specifications and aesthetic characteristics of the Thermaxx product. Please note: TRS/Thermaxx provides the information contained herein in good faith, and changes may have been made to the product since this brochure went to print (01.05.2025). *Fitted body weight is an approximate weight based on the standard products supplied. Note: final weight may vary based on the type of cab chassis used, and or extra body equipment added. The 4-year warranty is for the Thermaxx Advantage products only. -20°C is based on an average ambient temperature. Note this can fluctuate depending on the region travelled and time of year, also the number of door openings per day.
