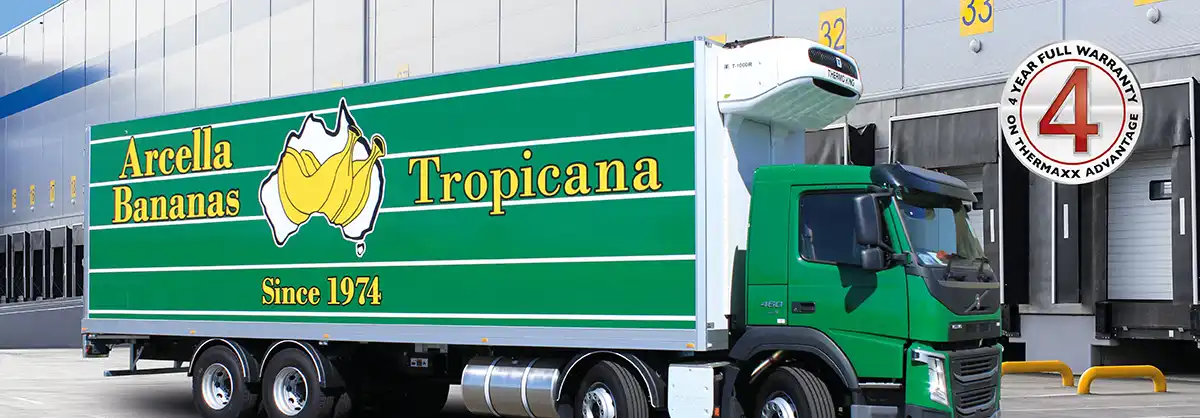

Thermaxx refrigerated truck A9000P

Model: A9000P – BEHI

Temperature Capacity: -20C*

Cubic Capacity: 52.08 m/3

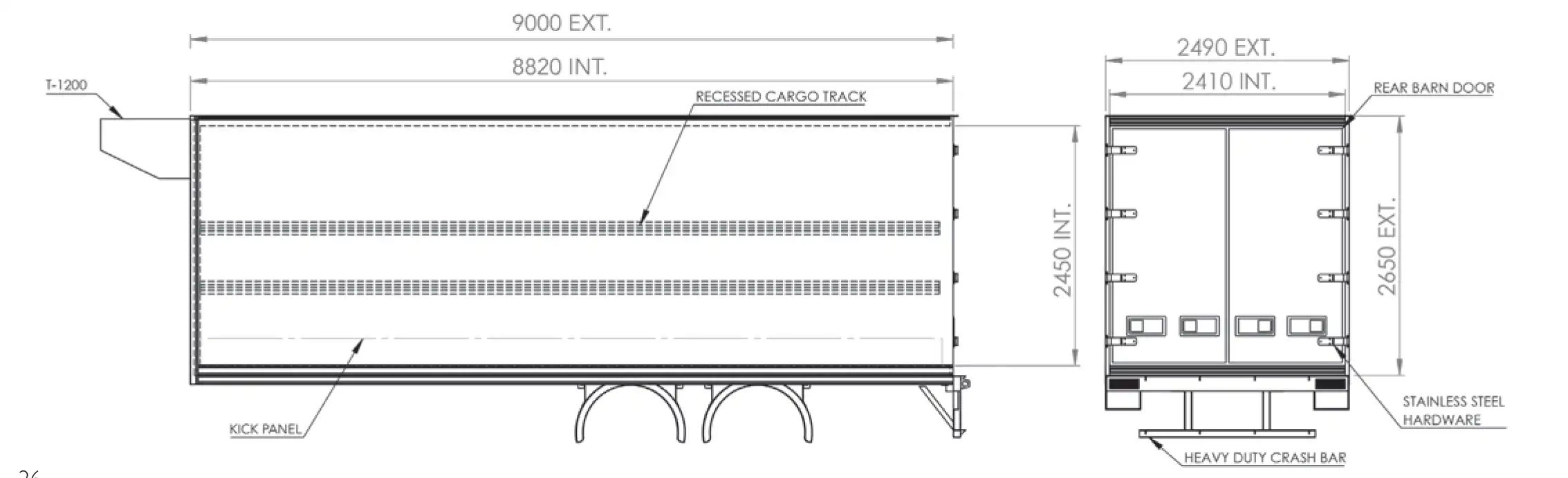

BODY DIMENSION

  • External length – 9000mm
  • External width – 2490mm
  • External height – 2650mm
  • Internal length – 8820mm
  • Internal width – 2410mm
  • Internal height – 2450mm
  • Pallet loading – 14 Pallet capacity

Fitted body weight *3420kg

PANELS THICKNESS

  • Roof/floor – 100mm
  • Front wall – 100mm
  • Side walls/side doors – 40mm
  • Rear doors – 80mm
  • Side door – N/A
  • Rear door  –Double (left opens frist)
  • Front wall frame – Universal to suit diesel drive units
  • Side step – N/A
  • Rear step – Heavy duty crash bar
  • Cargo track – 2 recessed row @ 800-1400mm 2 shoring bars
  • Floor – One piece aluminium ricegrain
  • Internal light – 4 LED sensor lights
  • Refrigeration – Thermo King T-1200R

Standard Inclusions

  • European design
  • European construction
  • Low tare weight
  • Higher legal payload
  • Galvanised sub frame
  • Recessed stainless door hardware
  • Stainless door frames
  • Anodised corner mouldings
  • Long life EPDM rubber seals
  • Internal LED sensor lights
  • Rubber bump stops
  • Rear/side grab handles
  • Recessed load restraint track
  • Moulded plastic mud guards
  • Alloy kick panel
  • Options available to suit customer requirements
  • 2 Lock rods per door

Thermal efficiency ‘K’ VALUE .55 W/m2K tested to Australian Standard AS4982

TRS/Thermaxx mission is one of continuous improvement, we reserve the right to change without notice or obligation to modify the technical specifications and aesthetic characteristics of the Thermaxx product. Please note: TRS/Thermaxx provides the information contained herein in good faith and changes may have been made to the product since this brochure went to print (01.3.2023). *Fitted body weight is an approximate weight based on the standard products supplied. Note: final weight may vary based on the type of cab chassis used, and or extra body equipment added. The 4-year warranty is for the Thermaxx Advantage products only. -20°C* is based on an average ambient temperature. Note this can fluctuate depending on the region travelling and time of year – also the amount of door opening per day.
