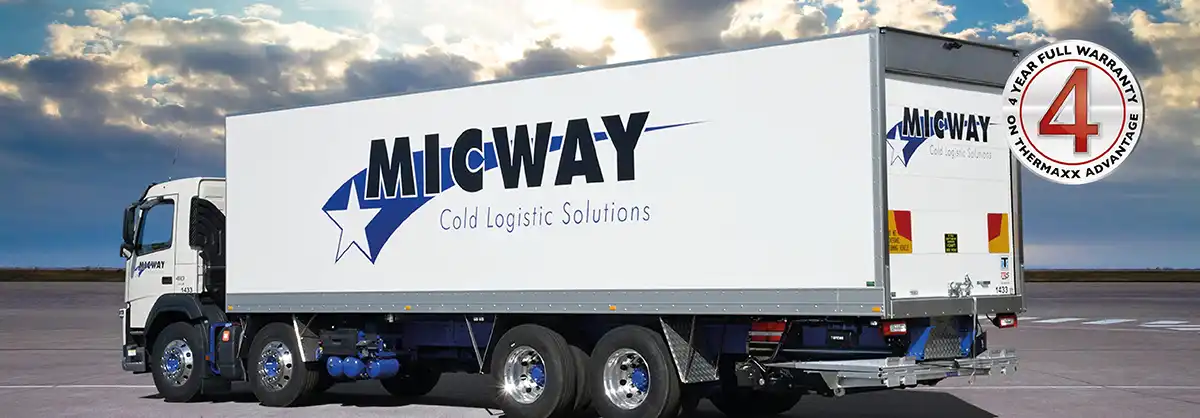

Thermaxx 14 pallet A950P EHO

Model: A9050P – EHO

Temperature Capacity: -20C

Cubic Capacity: 52.08 m/3

BODY DIMENSION

  • External length – 9050mm
  • External width – 2490mm
  • External height – 2650mm
  • Internal length – 8820mm
  • Internal width – 2410mm
  • Internal height – 2450mm
  • Pallet loading – 14 Pallet capacity

Fitted body weight *3710kg

PANELS THICKNESS

  • Roof/floor – 100mm
  • Front wall – 100mm
  • Side walls – 40mm
  • Side door – N/A
  • Rear door – 65mm freezer rated roller shutter door with galvanised frame
  • Front wall frame – Universal to suit diesel drive units
  • Side step – N/A
  • Rear step – Heavy duty crash bar
  • Cargo track – 2 recessed row @ 800-1400mm 2 shoring bars
  • Floor – One piece aluminium ricegrain
  • Internal light – 4 LED sensor lights
  • Refrigeration – Thermo King T-1200R

Standard Inclusions

  • European design
  • European construction
  • Low tare weight
  • Higher legal payload
  • Galvanised sub frame
  • Anodised corner mouldings
  • Long life EPDM rubber seals on roller door
  • Internal LED sensor lights
  • Rubber bump stops
  • Rear/side grab handles
  • Recessed load restraint track
  • Moulded plastic mud guards
  • Alloy kick panel
  • Options available to suit customer requirements
  • Heavy duty galvanised rear door frame

Thermal efficiency ‘K’ VALUE .64 W/m2K tested to Australian Standard AS4982

Thermaxx 14 pallets A950P EHO specs

TRS/Thermaxx mission is one of continuous improvement, we reserve the right to change without notice or obligation to modify the technical specifications and aesthetic characteristics of the Thermaxx product. Please note: TRS/Thermaxx provides the information contained herein in good faith and changes may have been made to the product since this web page went live (01.3.2020). *Fitted body weight is an approximate weight based on the standard products supplied. Note: final weight may vary based on the type of cab chassis used, and or extra body equipment added.  The 4-year warranty is for the Thermaxx products only.
