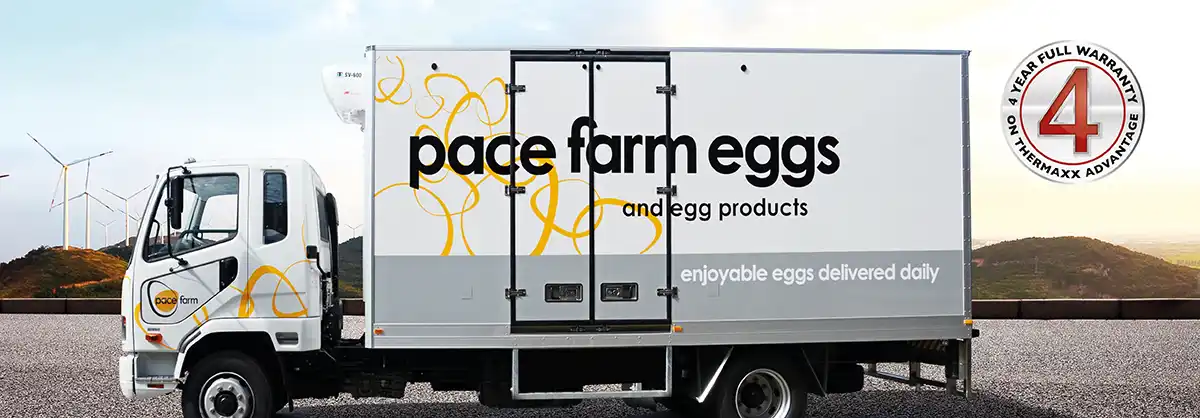

Model: Thermaxx A5500P – BDEHI
Temperature Capacity: -20C*
Cubic Capacity: 28.21 m/3
BODY DIMENSION
- External length – 5500mm
- External width – 2490mm
- External height – 2400mm
- Internal length – 5320mm
- Internal width – 2410mm
- Internal height – 2200mm
- Pallet loading – 8 Pallet capacity
Fitted body weight – *2090kg
PANELS THICKNESS
- Roof/floor – 100mm
- Front wall – 100mm
- Side walls/side doors – 40mm
- Rear doors – 80mm
- Side door – Passenger side single door 2200 x 1400mm
- Rear door – Double – (left opens first)
- Front wall frame – Universal to suit off engine drive units
- Sidestep – Fixed rung step
- Rear step – Fixed plank step
- Cargo track – 1 recessed row @ 800mm 1 shoring bar
- Floor – One piece aluminium ricegrain
- Internal light – 2 LED sensor light
- Refrigeration – Thermo King SV-800
- Option – Thermo King T-800R
Standard Inclusions
- High density polyurethane insulation
- European design
- European construction
- Low tare weight
- Higher legal payload
- Galvanised sub frame
- Recessed stainless door hardware
- Stainless door frames
- Anodised corner mouldings
- Long life EPDM rubber seals
- Internal LED sensor lights
- Rubber bump stops
- Rear/side grab handles
- Recessed load restraint track
- Moulded plastic mud guards
- Alloy kick panel
- Options available to suit customer requirements
Thermal efficiency ‘K’ VALUE .57 W/m2K tested to Australian Standard AS4982
TRS/Thermaxx mission is one of continuous improvement; we reserve the right to change without notice or obligation to modify the technical specifications and aesthetic characteristics of the Thermaxx product. Please note: TRS/Thermaxx provides the information contained herein in good faith, and changes may have been made to the product since this brochure went to print (01.05.2025). *Fitted body weight is an approximate weight based on the standard products supplied. Note: final weight may vary based on the type of cab chassis used, and or extra body equipment added. The 4-year warranty is for the Thermaxx Advantage products only. -20°C is based on an average ambient temperature. Note this can fluctuate depending on the region travelled and time of year, also the number of door openings per day.
