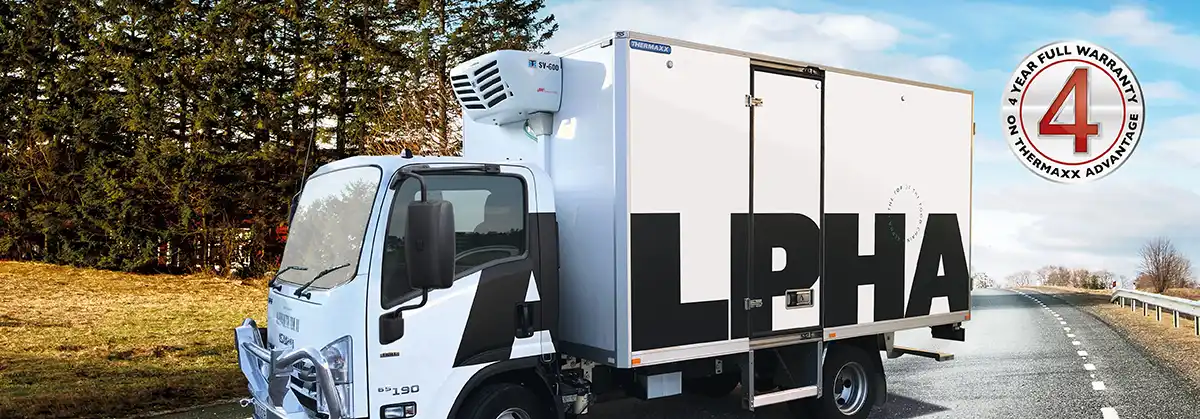

Model: Thermaxx A4200P – BCEHI
Temperature Capacity: -20C*
Cubic Capacity: 19.38 m/3
BODY DIMENSION
- External length 4200mm
- External width 2490mm
- External height 2200mm
- Internal length 4020mm
- Internal width 2410mm
- Internal height 2000mm
- Pallet loading 6 Pallet capacity
Fitted body weight *1428kg
PANELS THICKNESS
- Roof/floor – 100mm
- Front wall – 100mm
- Side walls/side doors – 40mm
- Rear door – 80mm
- Side door – Passenger side single door 2000 x 800mm
- Rear door – Double – (left opens first)
- Front wall frame – Universal to suit off engine or diesel drive units
- Side step – Fixed rung step
- Rear step – Fixed plank step
- Cargo track – 1 recessed row @ 800mm 1 shoring bar
- Floor – One piece aluminium ricegrain
- Internal light – 2 LED sensor lights
- Refrigeration – *Thermo King SV-400
- Option – Thermo *King SV-600
Standard Inclusions
- High density polyurethane insulation
- European design
- European construction
- Low tare weight
- Higher legal payload
- Galvanised sub frame
- Recessed stainless door hardware
- Stainless door frames
- Anodised corner mouldings
- Long life EPDM rubber seals
- Internal LED sensor lights
- Rubber bump stops
- Rear/side grab handles
- Recessed load restraint track
- Moulded plastic mud guards
- Alloy kick panel
- Options available to suit customer requirements
Thermal efficiency ‘K’ VALUE .55 W/m2K tested to Australian Standard AS4982
TRS/Thermaxx mission is one of continuous improvement, we reserve the right to change without notice or obligation to modify the technical specifications and aesthetic characteristics of the Thermaxx product. Please note: TRS/Thermaxx provides the information contained herein in good faith and changes may have been made to the product since this brochure went to print (01.3.2023). *Fitted body weight is an approximate weight based on the standard products supplied. Note: final weight may vary based on the type of cab chassis used, and or extra body equipment added. The 4-year warranty is for the Thermaxx Advantage products only. -20°C* is based on an average ambient temperature. Note this can fluctuate depending on the region travelling and time of year – also the amount of door opening per day.
